How much weight can the corrugated board withstand?

We recommend our E flute primarily for product packaging or for shipping packaging with a low shipping weight. We recommend our B flute for large product packaging or for shipping packaging with a medium shipping weight. We recommend our EB flute exclusively for large shipping boxes with a heavy shipping weight. E flute: up to 7 kilos B flute: up to 14 kilos EB flute: up to 32 kilos

Do I have to pay for the punching tool again if I order again?

No, you only need to pay for the punching tool once when you place your first order. This amount will no longer be displayed in the configurator for subsequent orders.

I would like a particularly small shipping box - what do I need to consider?

In our configurator you can configure both very large and very small shipping boxes. All sizes that can be manufactured from a technical point of view can be configured. Depending on the size and material, however, there may be problems in handling and packaging. Above all, we recommend the EB flute exclusively for medium to large cartons.

Can I choose a neutral return address?

We have optimized our order process especially for resellers and offer you the possibility that we send your orders neutral (without our branding on package or delivery bill) to your customers. Simply select "Neutral shipping / delivery bill" in the order process / check-out.

Corrugated cardboard reinforcement inlay – additional product protection

YOUR BENEFITS

Benefit from many advantages

Receive your corrugated cardboard reinforcement inlays in no time – produced in just 5 working days and ready for immediate dispatch. Ideal when speed is of the essence.

Start your order with as few as 10 items and remain flexible – perfect for tests, small print runs or seasonal promotions.

Configure your corrugated cardboard reinforcement inserts with millimetre precision according to your requirements. This ensures that the packaging fits the product, weight and shipping provider perfectly.

Our corrugated cardboard reinforcement inlays are made from sustainable corrugated cardboard with a high proportion of secondary fibres – robust, resource-efficient and 100% recyclable.

You will always have a dedicated contact person who will advise you personally and accompany your project from enquiry to delivery.

Nils Harder
CEO & Folding box specialist

Let's take your corrugated cardboard reinforcement inlays to the next level together!

Would you like to implement your corrugated cardboard reinforcement inlays professionally? Our team will provide you with personalised support for all questions relating to construction, materials, design and printing, and will work with you to find the right solution. We will reliably accompany you from the initial idea to implementation and ensure that your packaging protects, inspires and fits into your process. Feel free to get in touch – we look forward to hearing from you.

Tel.: +49 (0) 751 951 440 0

Mail: [email protected]

Highest quality

Materials for reinforcement inlays

E-flute

B-flute

EB-flute

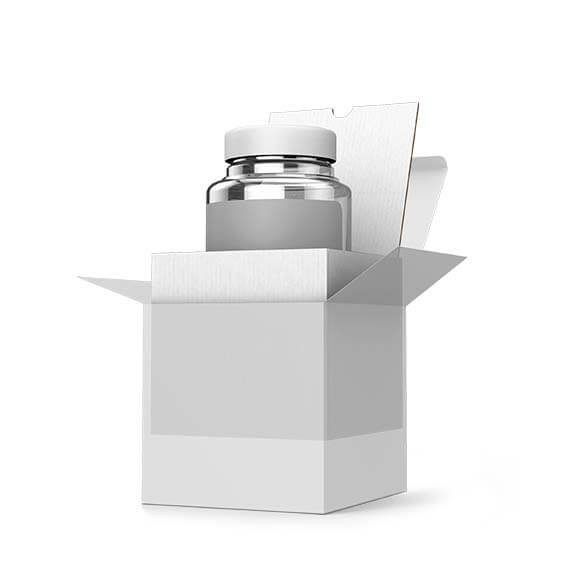

E-flute white/white

Board thickness: 1.5 mm | Microflute

White outside, white inside

Tight flute pitch (approx. 3 mm) | excellent printability

Load-bearing up to approx. 7 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

PAP20 – Recyclable with paper waste

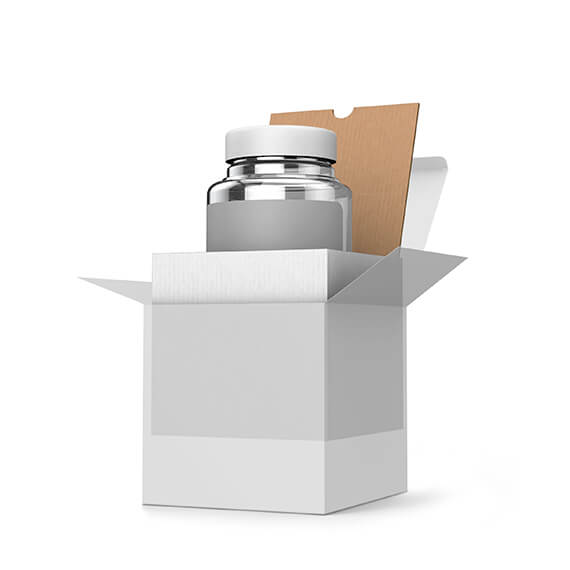

E-flute white/brown

Board thickness: 1.5 mm | Microflute

White outside, brown inside

Tight flute pitch (approx. 3 mm) | excellent printability

Load-bearing up to approx. 7 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

PAP20 – Recyclable with paper waste

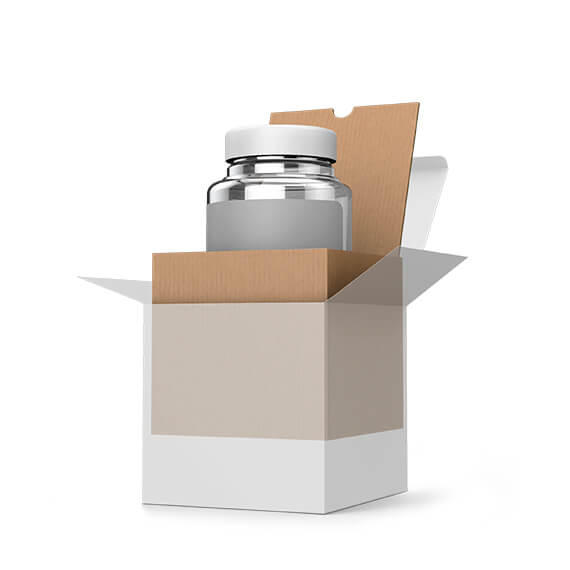

E-flute brown/brown

Board thickness: 1.5 mm | Microflute

Brown outside, brown inside

Tight flute pitch (approx. 3 mm) | excellent printability

Load-bearing up to approx. 7 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

PAP20 – Recyclable with paper waste

B-flute white/white

Board thickness: 3 mm | Fine flute

White outside, white inside

Tight flute pitch (approx. 4.8 mm) | excellent printability

Load-bearing up to approx. 14 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

Recyclable with paper waste

B-flute white/brown

Board thickness: 3 mm | Fine flute

White outside, brown inside

Tight flute pitch (approx. 4.8 mm) | excellent printability

Load-bearing up to approx. 14 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

Recyclable with paper waste

B-flute brown/brown

Board thickness: 3 mm | Fine flute

Brown outside, brown inside

Tight flute pitch (approx. 4.8 mm) | excellent printability

Load-bearing up to approx. 14 kg (with even weight distribution)

For product and transit packaging

Suitable for digital, offset or flexographic printing

Recyclable with paper waste

EB-flute white/white

Board thickness: 4.5 mm | Double-wall flute

White outside, white inside

Mixed flute pitch (3–5 mm) | excellent printability

Load-bearing up to approx. 32 kg (with even weight distribution)

For transit packaging

Suitable for digital, offset or flexographic printing

Recyclable with paper waste

EB-flute brown/brown

Board thickness: 4.5 mm | Double-wall flute

Brown outside, brown inside

Mixed flute pitch (3–5 mm) | excellent printability

Load-bearing up to approx. 32 kg (with even weight distribution)

For transit packaging

Suitable for digital, offset or flexographic printing

Recyclable with paper waste

>4000 CUSTOMERS PLACE THEIR TRUST IN US

Turn your reinforcement inlays into game changers!

Do you need corrugated cardboard reinforcement inlays that suits your product? We'll take care of it – no matter whether it's small, large or really challenging. We have been printing in Germany for three generations, combining experience with modern technology. You get quality you can rely on and people who think ahead. Together, we'll turn your idea into the perfect packaging.

Google reviews

What our customers say

Reinforcing inlays made of corrugated cardboard

Frequently asked questions

Interesting facts

Guide to reinforcement inlays

Corrugated cardboard

B-flute

The B-flute is a type of flute from the fine flute category. Like all corrugated cardboard, it consists of a stable composite of two smooth outer layers (liners) and a corrugated paper layer (flute) in the middle. The corrugation height and corrugation pitch are decisive for the properties: For B-flute, typical values are 2.2–3.1 mm corrugation height and 4.8–6.5 mm corrugation pitch.

E-flute

The E-flute is a type of flute from the category of microflutes and consists of two smooth outer layers (liners) and a corrugated paper layer (flute) in the middle. The corrugation height and corrugation pitch are decisive for the properties of E-flute. Typical values for E-flute are 1.0–1.9 mm for the corrugation height and 2.6–3.5 mm for the corrugation pitch.

EB-flute

EB flute is a double-flute corrugated board consisting of a combination of E-flute and B-flute. Like all corrugated board, it is made up of smooth outer liners and corrugated paper layers – in the case of EB flute, there are typically two flute layers with an intermediate layer in between (making a total of three outer and intermediate layers).

Go to adviser

B-flute

The B-flute is a type of flute from the fine flute category. Like all corrugated cardboard, it consists of a stable composite of two smooth outer layers (liners) and a corrugated paper layer (flute) in the middle. The corrugation height and corrugation pitch are decisive for the properties: For B-flute, typical values are 2.2–3.1 mm corrugation height and 4.8–6.5 mm corrugation pitch.

E-flute

The E-flute is a type of flute from the category of microflutes and consists of two smooth outer layers (liners) and a corrugated paper layer (flute) in the middle. The corrugation height and corrugation pitch are decisive for the properties of E-flute. Typical values for E-flute are 1.0–1.9 mm for the corrugation height and 2.6–3.5 mm for the corrugation pitch.

EB-flute

EB flute is a double-flute corrugated board consisting of a combination of E-flute and B-flute. Like all corrugated board, it is made up of smooth outer liners and corrugated paper layers – in the case of EB flute, there are typically two flute layers with an intermediate layer in between (making a total of three outer and intermediate layers).
